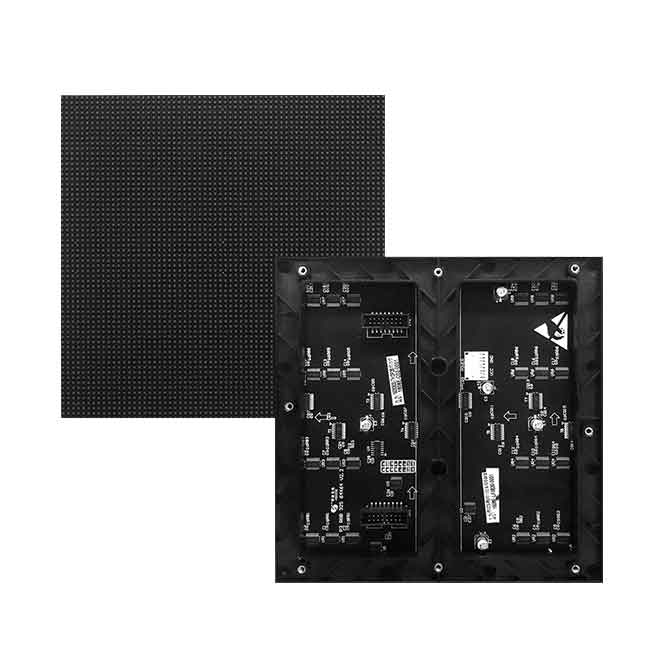

Indoor P3.0 SMD Full Color LED Module |
Technical parameters |
Pixel Pitch | 3.0 mm |
Module Size | 192 × 192mm |
Resolution | 64 × 64=4096 dots |
Pixels Density | 111111 dots/m |
LED Lamp | SMD 2121/black |
Brightness | 800 cd/sqm |
Driving Mode | 1/32 S |
Weight | 0.275 kg |
Thickness | 12.2 mm |
View Angle | H: 120°± 20° ;V: 120°± 20° |
Driving IC | MBI5124/ ICN2037 |
Refresh Rate | ≥1920 hz |
Grey Scale | 65536 |
Service Life | 100000 hrs |
Storage Temp/Humidity | -25℃~55℃, 10~90% RH |
Control System | Nova/Linsn/ColorLight/HD/Onbox etc. |
Regular Cabinet | 576 × 576 mm /8.0kg |
Cabinet Resolution | 192 × 192 dots/cabinet |
Consumption | Max:510 w/sqm ; Average:280 w/sqm |
Working/input voltage | 200/110-240V |
